BRANNSTROM

Products of BRANNSTROM Sweden AB

Brannstrom Sweden AB was founded in 1985 by the present owner Roland Brännström as a company specializing in developing tailor-made systems for, and in close co-operation with the customers. In the beginning, the focus was set on design, development and production of specific types of measuring processors for the marine market - 'bilge alarms', but also PC-Board design, and development of control systems and turbidity meters for sewage treatment plants. The company expanded, and the product range of today involves systems within areas reaching from marine pollution control systems (ODMCS) to land based paper mill in-line monitoring systems. All systems are designed for heavy-duty work, in tough environment conditions, in compliance with certification and test conditions established by international regulatory bodies such as IMO and Classification Societies, as well as National Administrations. Brannstrom Sweden AB is represented worldwide via a network of sales and service agents.-

ODME CleanTrack 1000 and 1000B

The Oil Discharge Monitoring Equipment (ODME) type CLEANTRACK 1000 is a new Fourth Generation ODME, based on a well proven concept further developed to meet the special demands of the latest trends in shipbuilding. It is type approved to meet the requirements of IMO Resolution MEPC.108(49) as amended by MEPC.240(65), with the addition of acceptance for all Bio-fuel blends as defined in IMO Resolution MEPC.1/Circ.761 Rev.1.

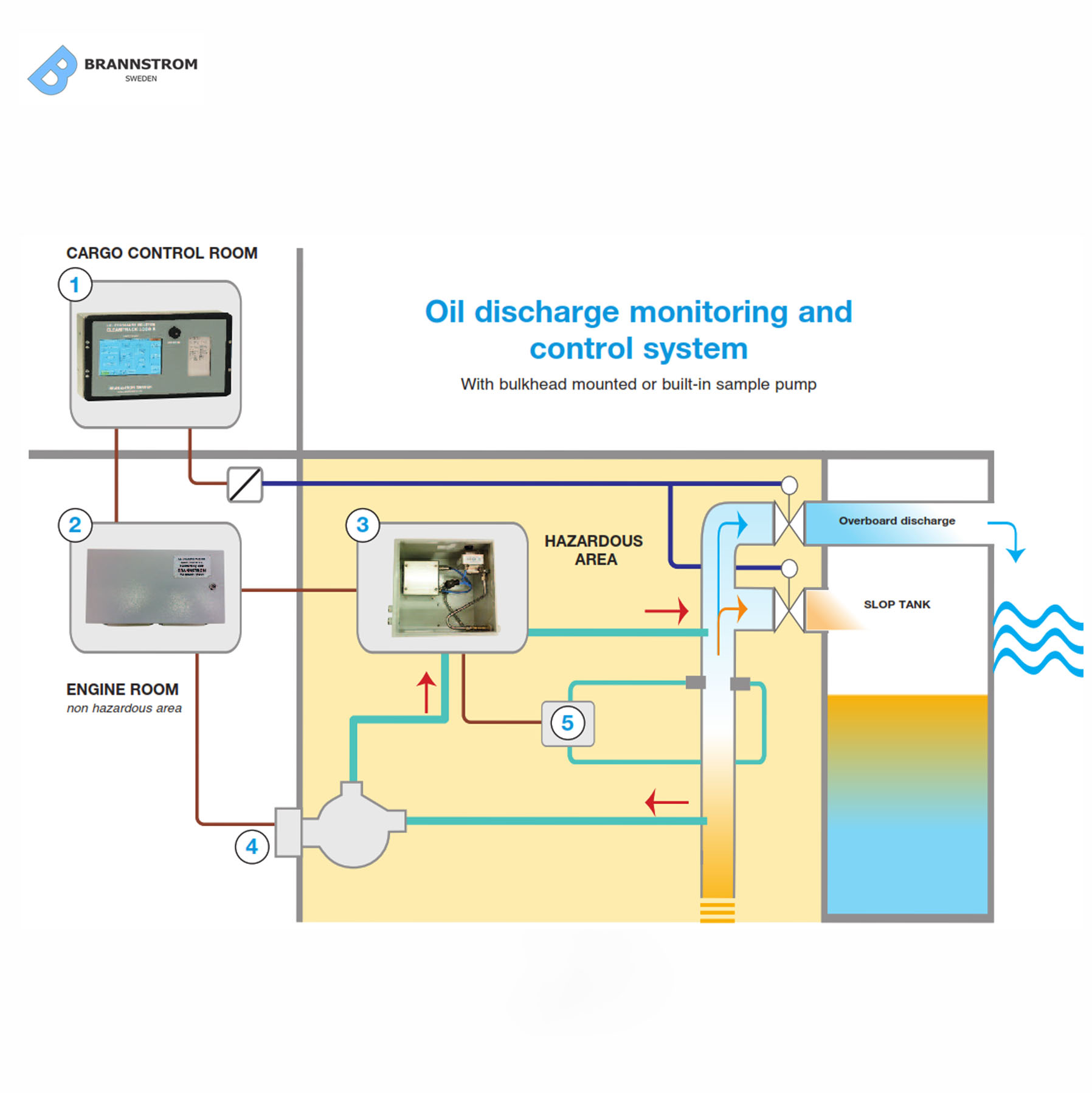

The new compact CLEANTRACK 1000 enables easy installation in the hazardous cargo area also far away from the nearest non-hazardous area. Installation work is simplified by a reduced demand of cabling, piping, and bulkhead penetrations. The CLEANTRACK 1000 is available in alternative versions with compact built-in pneumatic or ATEX certified electrical pump for hazardous area, or for a variety of bulkhead mounted external pumps. This makes the CLEANTRACK 1000 ideal also for retrofits without hot work. The smart detachable measuring cell is easy to remove and replace with a newly calibrated cell, if this is preferred to having the system accuracy verified on board.

download catalogue

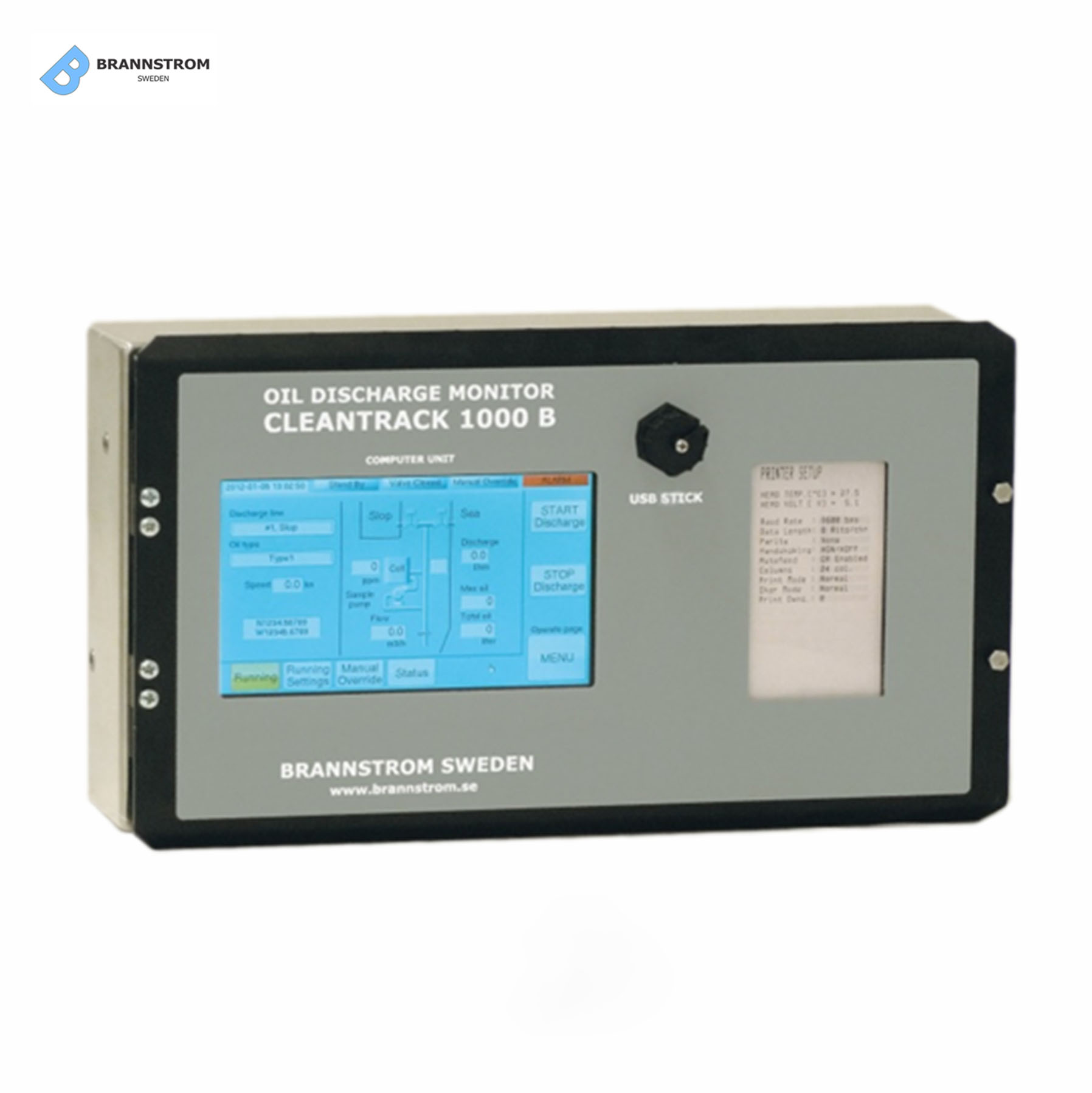

The Oil Discharge Monitoring Equipment (ODME) type CLEANTRACK 1000B is a new Fourth Generation ODME, based on a well proven concept further developed to meet the special demands of the latest trends in shipbuilding. It is type approved to meet the requirements of IMO Resolution MEPC.108(49) as amended by MEPC.240(65), with the addition of acceptance for all Bio-fuel blends as defined in IMO Resolution MEPC.1/Circ.761 Rev.1.

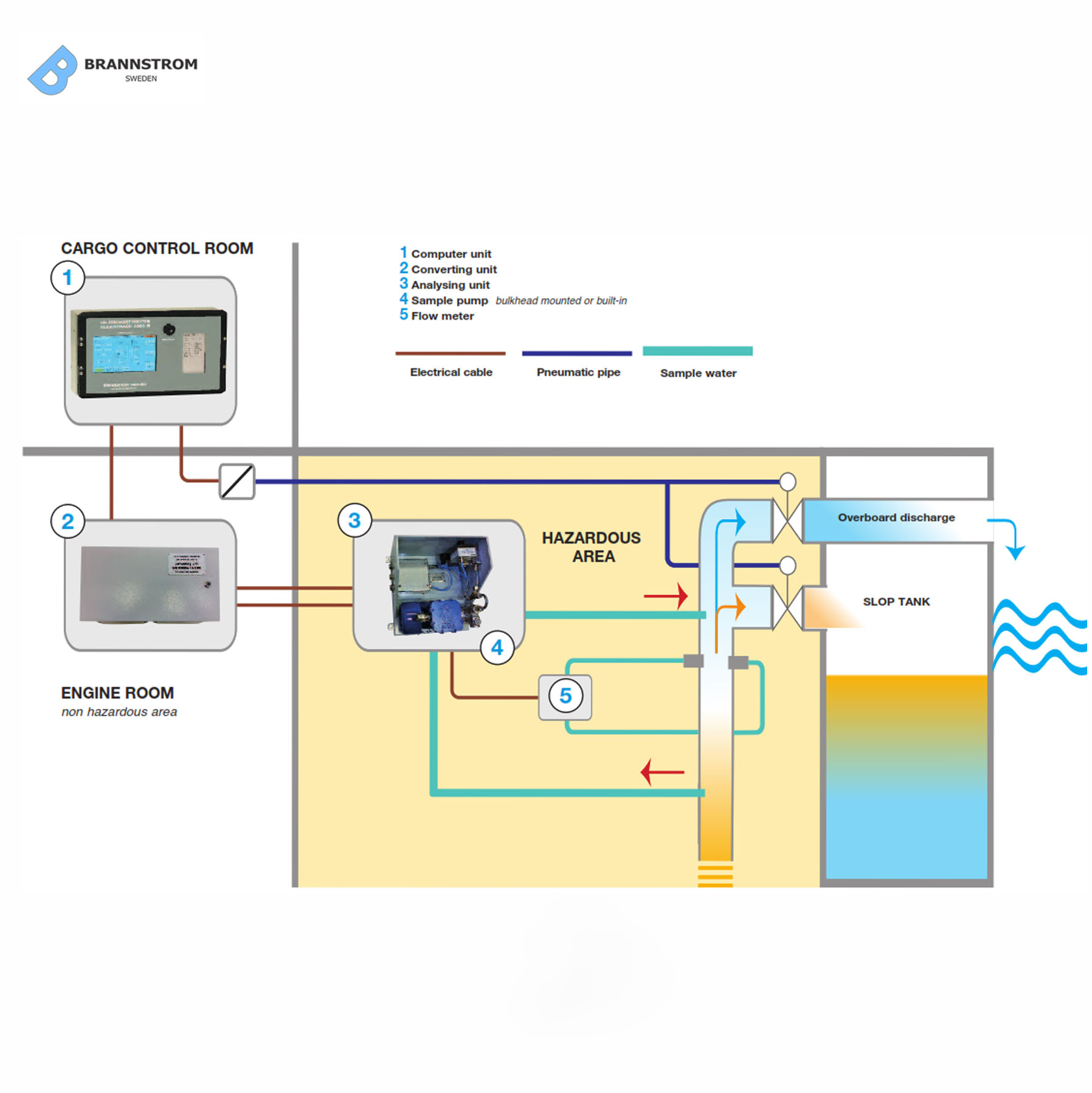

The new compact CLEANTRACK 1000B enables easy installation in the hazardous cargo area also far away from the nearest non-hazardous area. Installation work is simplified by a reduced demand of cabling, piping, and bulkhead penetrations. The CLEANTRACK 1000B is available in alternative versions with compact built-in pneumatic or ATEX certified electrical pump for hazardous area, or for a variety of bulkhead mounted external pumps. This makes the CLEANTRACK 1000B ideal also for retrofits without hot work. The smart detachable measuring cell is easy to remove and replace with a newly calibrated cell, if this is preferred to having the system accuracy verified on board.

download catalogue


Fresh Water Silver Ion Sterilizer

The Fresh Water Silver Ion Sterilizer type SILSTER 168 is based on a well proven method used for ages. Using silver ions for disinfection is completely harmless to humans, meeting the requirements of European Community directive 80/778/EEC. As an added benefit you avoid the piping corrosion normally caused by chlorination.

The SILSTER 168 automatically sterilizes the water of the fresh water holding tank with no need for crew interaction and practically no maintenance need. Also bunkered water can be sterilized without manual setting of current and time. The long lasting sterilizing effect of the silver ions combined with the fact that it doesn’t change the taste, smell or colour of the water makes it ideal for a number of applications.

download catalogue

Oil Detector - Oil Contamination Alarm

The Oil Contamination Alarm type OILCAP 158 measures capacitance between its rod and the walls of the water tank where it is installed. Lower capacitance indicates a higher concentration of oil in the water. The OILCAP 158 has an adjustable alarm limit, and when the capacitance falls under the set value (the oil concentration rises), a relay with opening & closing contacts is activated with a 1 sec delay. When the capacitance again rises above the set value (the oil concentration falls), the relay is deactivated after a delay which is adjustable from 0 to 30 sec in steps of 2 sec. The OILCAP 158 is also equipped with an alarm relay to indicate power failure.

download catalogue
